Spacecraft escaping the Solar System
|
Home
|
This page shows the current positions and other interesting data of the five spacecraft which are leaving the Solar System on escape trajectories - our first emissaries to the stars. On this scale, the nearest star to the Sun would be approximately 100 meters away, and it would take Voyager 1 about 70,000 years to cover that distance.
|
|

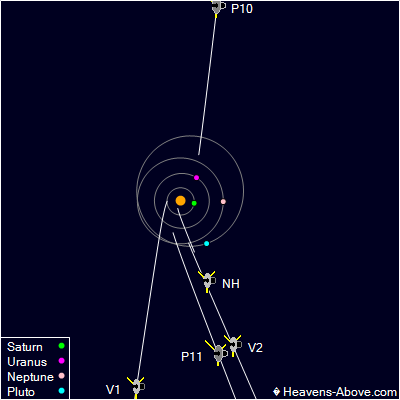

View from 90° above ecliptic plane
|
|
|
|

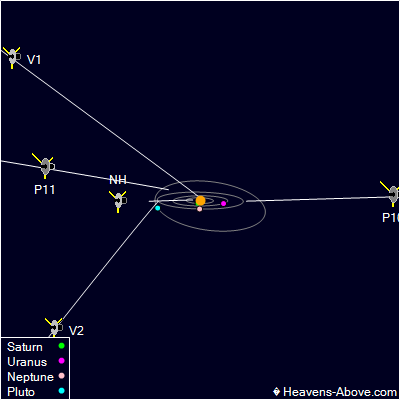

View from 10° above ecliptic plane
|
|
| Pioneer 10 | Pioneer 11 | Voyager 2 | Voyager 1 | New Horizons | | Distance from Sun (AU) | 137.562 | 115.253 | 138.424 | 165.668 | 60.631 | | Speed relative to Sun (km/s) | 11.880 | 11.148 | 15.273 | 16.929 | 13.649 | | Speed relative to Sun (AU/year) | 2.506 | 2.352 | 3.222 | 3.571 | 2.879 | | Ecliptic latitude | 3° | 14° | -38° | 35° | 2° | | Declination | 26° 0' | -9° 1' | -59° 11' | 12° 2' | -20° 18' | | Right ascension | 5h 12m | 18h 54m | 20h 5m | 17h 16m | 19h 16m | | Constellation | Taurus | Scutum | Pavo | Ophiuchus | Sagittarius | | Distance from Earth (AU) | 136.602 | 116.187 | 139.161 | 166.446 | 61.575 | | One-way light time (hours) | 18.93 | 16.10 | 19.29 | 23.07 | 8.54 | | Brightness of Sun from spacecraft (Magnitude) | -16.0 | -16.4 | -16.0 | -15.6 | -17.8 | | Spacecraft still functioning? | no | no | yes | yes | yes | | Launch date | 1972-Mar-03 | 1973-Apr-06 | 1977-Aug-20 | 1977-Sep-05 | 2006-Jan-19 |
|
|
