View from above orbital plane
|
View from above satellite
|

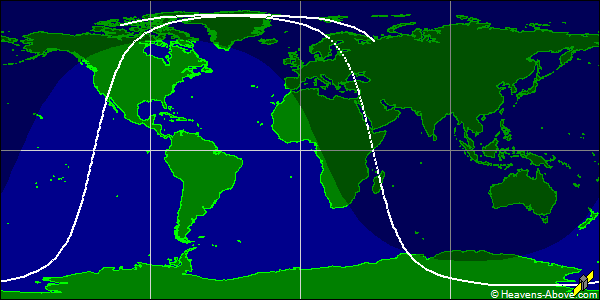

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 25733U 99025D 24358.09856182 .00001038 00000-0 52615-3 0 9990
2 25733 98.7528 39.8491 0013625 295.1528 64.8234 14.18180191323373
| Epoch (UTC): | 23 December 2024 02:21:55 |
| Eccentricity: | 0.0013625 |
| inclination: | 98.7528° |
| perigee height: | 821 km |
| apogee height: | 841 km |
| right ascension of ascending node: | 39.8491° |
| argument of perigee: | 295.1528° |
| revolutions per day: | 14.18180191 |
| mean anomaly at epoch: | 64.8234° |
| orbit number at epoch: | 32337 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
