View from above orbital plane
|
View from above satellite
|

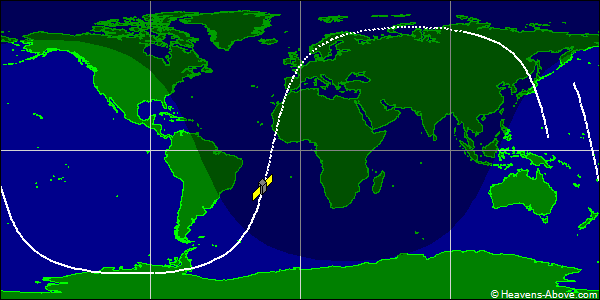

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 38212U 93036BTC 24355.60055272 .00004793 00000-0 66901-3 0 9991
2 38212 74.0525 55.2903 0099274 217.5273 141.8945 14.74577678763287
| Epoch (UTC): | 20 December 2024 14:24:47 |
| Eccentricity: | 0.0099274 |
| inclination: | 74.0525° |
| perigee height: | 577 km |
| apogee height: | 716 km |
| right ascension of ascending node: | 55.2903° |
| argument of perigee: | 217.5273° |
| revolutions per day: | 14.74577678 |
| mean anomaly at epoch: | 141.8945° |
| orbit number at epoch: | 76328 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
