View from above orbital plane
|
View from above satellite
|

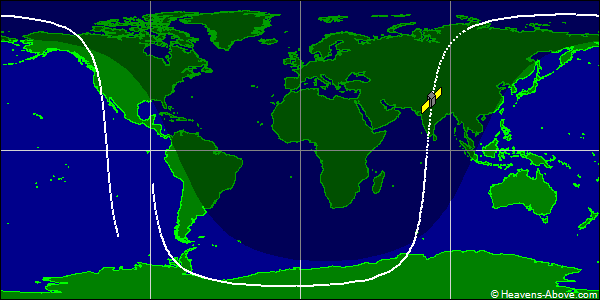

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 24594U 94029YW 24357.88373133 .00006673 00000-0 14948-2 0 9995
2 24594 81.4622 152.8461 0471325 69.1478 295.9489 14.05115303431651
| Epoch (UTC): | 22 December 2024 21:12:34 |
| Eccentricity: | 0.0471325 |
| inclination: | 81.4622° |
| perigee height: | 534 km |
| apogee height: | 1218 km |
| right ascension of ascending node: | 152.8461° |
| argument of perigee: | 69.1478° |
| revolutions per day: | 14.05115303 |
| mean anomaly at epoch: | 295.9489° |
| orbit number at epoch: | 43165 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
