View from above orbital plane
|
View from above satellite
|

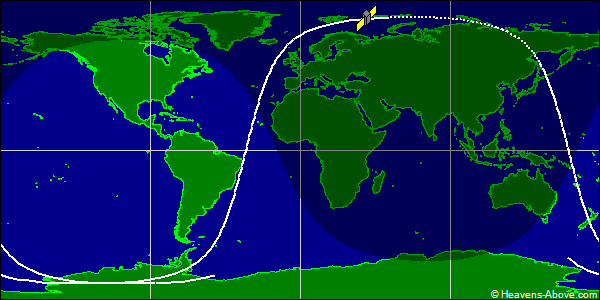

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 21473U 75052FH 24358.05991049 .00002183 00000-0 24563-2 0 9991
2 21473 99.9053 169.6208 0242314 246.6102 243.1337 13.60163107659666
| Epoch (UTC): | 23 December 2024 01:26:16 |
| Eccentricity: | 0.0242314 |
| inclination: | 99.9053° |
| perigee height: | 855 km |
| apogee height: | 1215 km |
| right ascension of ascending node: | 169.6208° |
| argument of perigee: | 246.6102° |
| revolutions per day: | 13.60163107 |
| mean anomaly at epoch: | 243.1337° |
| orbit number at epoch: | 65966 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
