View from above orbital plane
|
View from above satellite
|

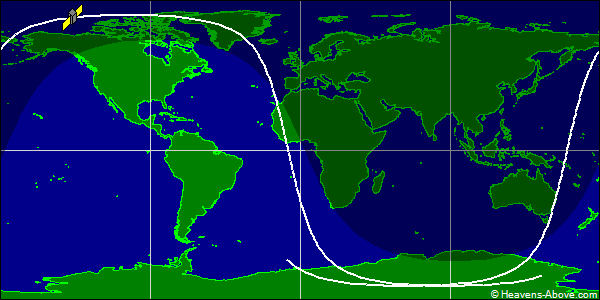

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 23258U 90081CP 24355.19903538 .00001080 00000-0 53341-3 0 9993
2 23258 98.6579 342.5815 0021917 173.6151 186.5309 14.19331901682435
| Epoch (UTC): | 20 December 2024 04:46:36 |
| Eccentricity: | 0.0021917 |
| inclination: | 98.6579° |
| perigee height: | 812 km |
| apogee height: | 843 km |
| right ascension of ascending node: | 342.5815° |
| argument of perigee: | 173.6151° |
| revolutions per day: | 14.19331901 |
| mean anomaly at epoch: | 186.5309° |
| orbit number at epoch: | 68243 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
