View from above orbital plane
|
View from above satellite
|

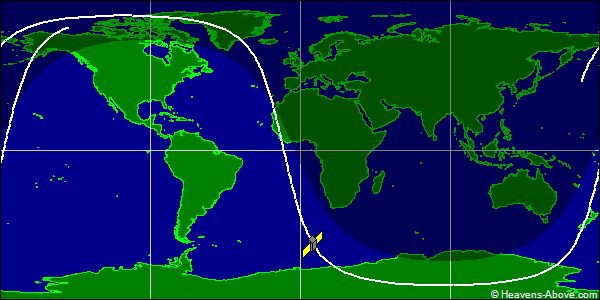

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 33728U 99025DHR 24355.77405168 .00011076 00000-0 98438-3 0 9995
2 33728 99.0115 356.4473 0162164 276.5862 259.0481 14.86736513929843
| Epoch (UTC): | 20 December 2024 18:34:38 |
| Eccentricity: | 0.0162164 |
| inclination: | 99.0115° |
| perigee height: | 495 km |
| apogee height: | 721 km |
| right ascension of ascending node: | 356.4473° |
| argument of perigee: | 276.5862° |
| revolutions per day: | 14.86736513 |
| mean anomaly at epoch: | 259.0481° |
| orbit number at epoch: | 92984 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
