View from above orbital plane
|
View from above satellite
|

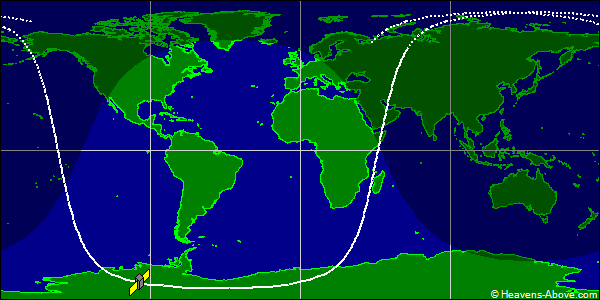

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 42847U 17042Y 24358.02994378 .00007450 00000-0 58877-3 0 9997
2 42847 97.3677 173.4456 0012051 111.8089 248.4419 15.00877688405756
| Epoch (UTC): | 23 December 2024 00:43:07 |
| Eccentricity: | 0.0012051 |
| inclination: | 97.3677° |
| perigee height: | 556 km |
| apogee height: | 572 km |
| right ascension of ascending node: | 173.4456° |
| argument of perigee: | 111.8089° |
| revolutions per day: | 15.00877688 |
| mean anomaly at epoch: | 248.4419° |
| orbit number at epoch: | 40575 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
