View from above orbital plane
|
View from above satellite
|

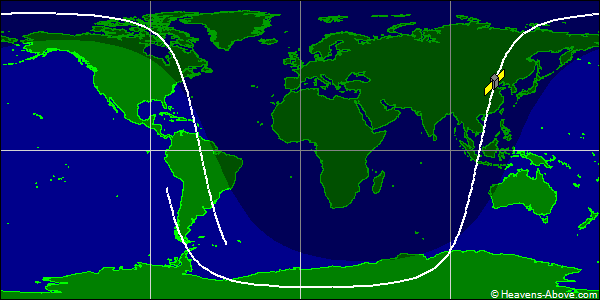

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 19365U 75004HQ 24356.49211995 .00002062 00000-0 70460-3 0 9990
2 19365 97.6385 343.1459 0135799 183.5261 176.4982 14.32155596901966
| Epoch (UTC): | 21 December 2024 11:48:39 |
| Eccentricity: | 0.0135799 |
| inclination: | 97.6385° |
| perigee height: | 687 km |
| apogee height: | 882 km |
| right ascension of ascending node: | 343.1459° |
| argument of perigee: | 183.5261° |
| revolutions per day: | 14.32155596 |
| mean anomaly at epoch: | 176.4982° |
| orbit number at epoch: | 90196 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
