View from above orbital plane
|
View from above satellite
|

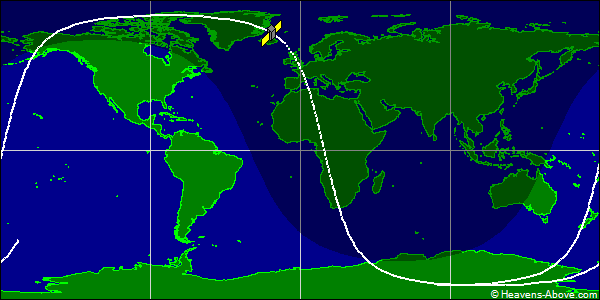

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 31275U 99025BNH 24358.10521358 .00002916 00000-0 18796-2 0 9991
2 31275 98.9886 41.5377 0108566 256.6456 102.2586 14.00940735905578
| Epoch (UTC): | 23 December 2024 02:31:30 |
| Eccentricity: | 0.0108566 |
| inclination: | 98.9886° |
| perigee height: | 811 km |
| apogee height: | 969 km |
| right ascension of ascending node: | 41.5377° |
| argument of perigee: | 256.6456° |
| revolutions per day: | 14.00940735 |
| mean anomaly at epoch: | 102.2586° |
| orbit number at epoch: | 90557 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
