View from above orbital plane
|
View from above satellite
|

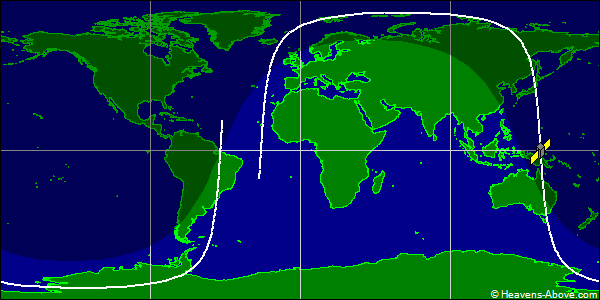

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 13553U 82092B 24357.61800399 .00000892 00000-0 99168-4 0 9991
2 13553 82.5674 194.7353 0020040 331.0584 87.7309 14.85961455263264
| Epoch (UTC): | 22 December 2024 14:49:55 |
| Eccentricity: | 0.0020040 |
| inclination: | 82.5674° |
| perigee height: | 596 km |
| apogee height: | 624 km |
| right ascension of ascending node: | 194.7353° |
| argument of perigee: | 331.0584° |
| revolutions per day: | 14.85961455 |
| mean anomaly at epoch: | 87.7309° |
| orbit number at epoch: | 26326 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
