View from above orbital plane
|
View from above satellite
|

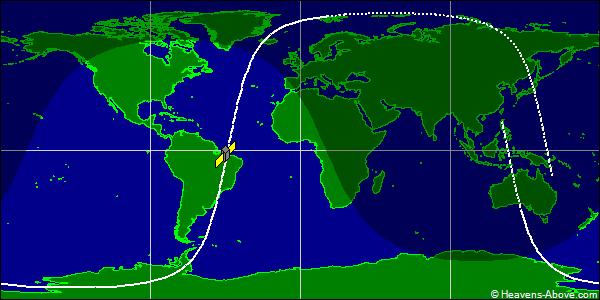

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 52757U 22057AB 24357.82320184 .00017069 00000-0 57925-3 0 9995
2 52757 97.5955 122.3016 0007759 200.0407 160.0530 15.30558734142995
| Epoch (UTC): | 22 December 2024 19:45:24 |
| Eccentricity: | 0.0007759 |
| inclination: | 97.5955° |
| perigee height: | 469 km |
| apogee height: | 479 km |
| right ascension of ascending node: | 122.3016° |
| argument of perigee: | 200.0407° |
| revolutions per day: | 15.30558734 |
| mean anomaly at epoch: | 160.0530° |
| orbit number at epoch: | 14299 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
