View from above orbital plane
|
View from above satellite
|

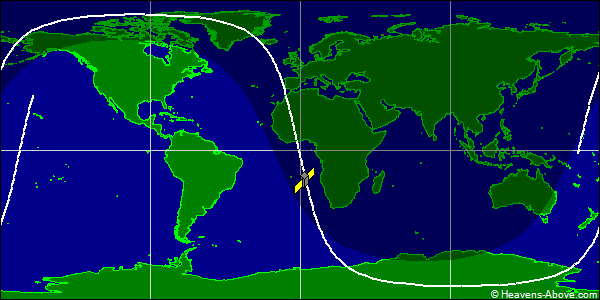

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 55214U 22151WF 24358.04470016 .00014565 00000-0 27417-2 0 9996
2 55214 98.4848 18.7621 0124226 111.3365 250.1146 14.59788234106223
| Epoch (UTC): | 23 December 2024 01:04:22 |
| Eccentricity: | 0.0124226 |
| inclination: | 98.4848° |
| perigee height: | 606 km |
| apogee height: | 782 km |
| right ascension of ascending node: | 18.7621° |
| argument of perigee: | 111.3365° |
| revolutions per day: | 14.59788234 |
| mean anomaly at epoch: | 250.1146° |
| orbit number at epoch: | 10622 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
