View from above orbital plane
|
View from above satellite
|

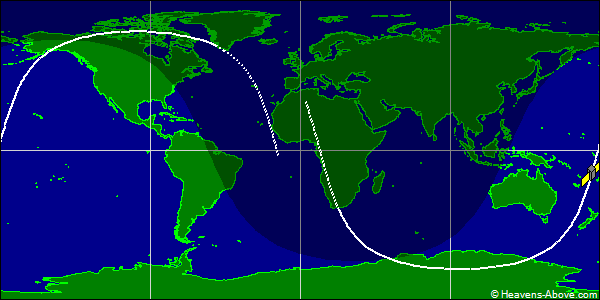

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 22348U 92093AM 24358.15581821 .00001012 00000-0 58630-3 0 9994
2 22348 71.2588 239.4120 0103445 136.9727 19.0317 14.08473338637441
| Epoch (UTC): | 23 December 2024 03:44:22 |
| Eccentricity: | 0.0103445 |
| inclination: | 71.2588° |
| perigee height: | 789 km |
| apogee height: | 939 km |
| right ascension of ascending node: | 239.4120° |
| argument of perigee: | 136.9727° |
| revolutions per day: | 14.08473338 |
| mean anomaly at epoch: | 19.0317° |
| orbit number at epoch: | 63744 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
