View from above orbital plane
|
View from above satellite
|

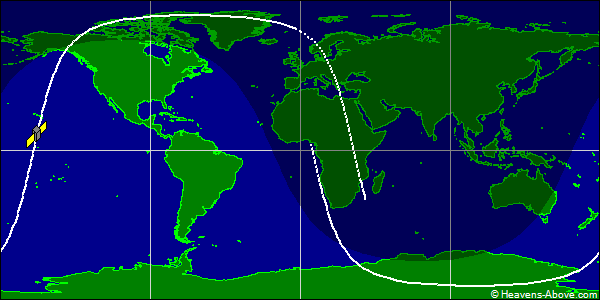

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 54475U 22151HB 24357.66551604 .00007211 00000-0 13947-2 0 9997
2 54475 98.6630 38.8759 0148591 113.5366 248.1521 14.56812702111644
| Epoch (UTC): | 22 December 2024 15:58:20 |
| Eccentricity: | 0.0148591 |
| inclination: | 98.6630° |
| perigee height: | 598 km |
| apogee height: | 809 km |
| right ascension of ascending node: | 38.8759° |
| argument of perigee: | 113.5366° |
| revolutions per day: | 14.56812702 |
| mean anomaly at epoch: | 248.1521° |
| orbit number at epoch: | 11164 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
