View from above orbital plane
|
View from above satellite
|

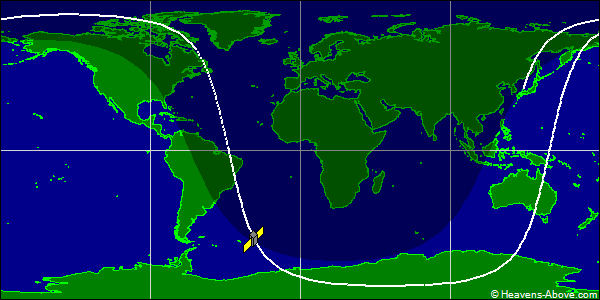

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 30791U 99057PA 24358.05943090 .00008308 00000-0 17204-2 0 9997
2 30791 98.5885 29.0974 0004702 203.7767 185.4737 14.60514743939631
| Epoch (UTC): | 23 December 2024 01:25:34 |
| Eccentricity: | 0.0004702 |
| inclination: | 98.5885° |
| perigee height: | 688 km |
| apogee height: | 695 km |
| right ascension of ascending node: | 29.0974° |
| argument of perigee: | 203.7767° |
| revolutions per day: | 14.60514743 |
| mean anomaly at epoch: | 185.4737° |
| orbit number at epoch: | 93963 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
